THÔNG SỐ KỸ THUẬT

Hãng sản xuất	Asrock
Chủng loại	Fatal1ty Z170 Gaming K4
CPU hỗ trợ	Supports 6^th Generation Intel^® Core™ i7/i5/i3/Pentium^®/Celeron^® Processors (Socket 1151) Digi Power design 10 Power Phase design Supports Intel^® Turbo Boost 2.0 Technology Supports Intel^® K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking
Chipset	Intel® Z170
Bộ nhớ trong	Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 3866+(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB* Supports Intel^® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots
VGA	Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1792MB - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Âm thanh	7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Supports Purity Sound™ 3 - Nichicon Fine Gold Series Audio Caps - 115dB SNR DAC with differential amplifier - TI^® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Supports DTS Connect
Mạng	PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Killer™ E2400 Series - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Khe mở rộng	2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™
Chuẩn lưu trữ	6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 14 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug - 2 x SATA Express 10 Gb/s Connectors* - 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

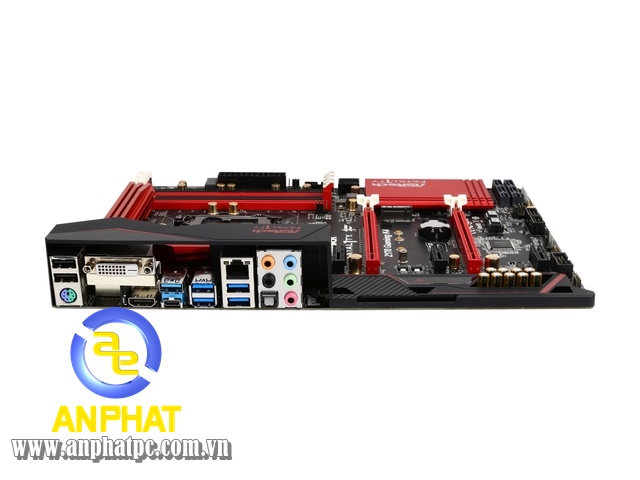

Cổng giao tiếp trước và sau	1 x PS/2 Mouse/Keyboard Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) - 5 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Kích thước	ATX Form Factor

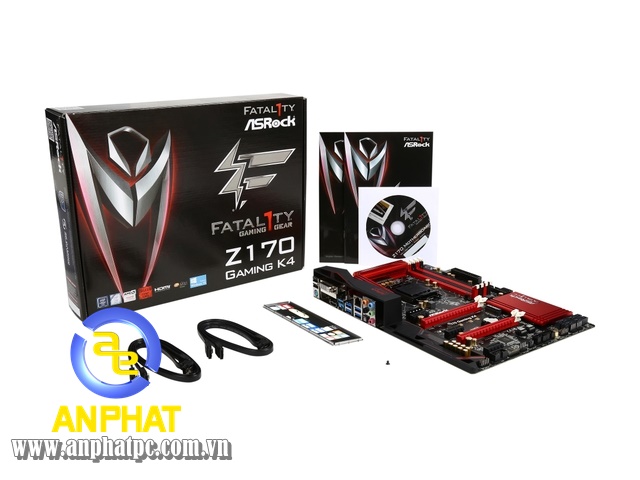

Phụ kiện đi kèm	Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main

XEM THÊM THÔNG SỐ

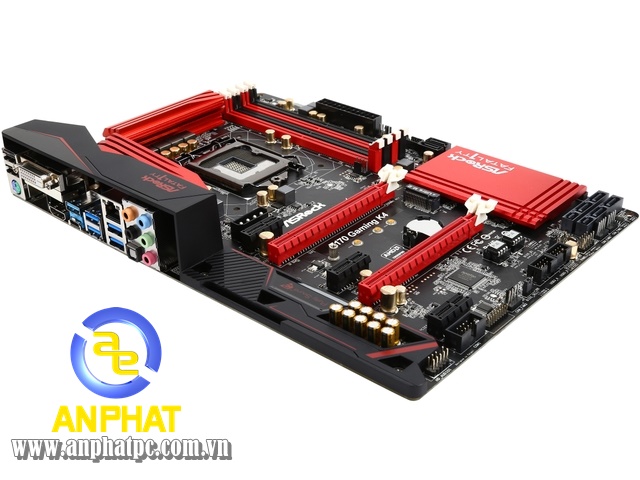

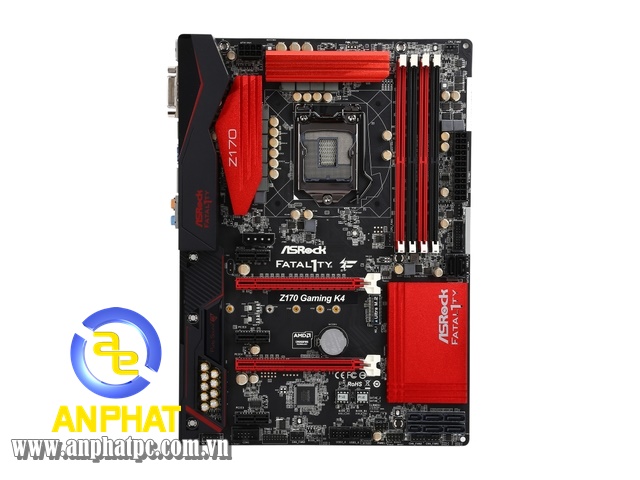

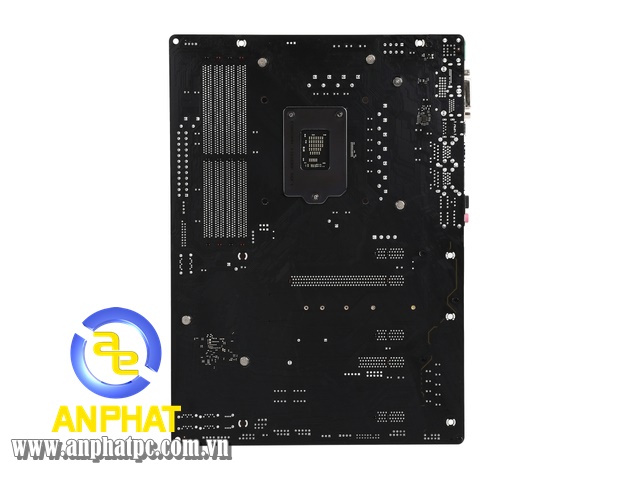

Mainboard ASRock Fatal1ty Z170 Gaming K4

Name: Mainboard ASRock Fatal1ty Z170 Gaming K4
Brand: Asrock
SKU: 18154
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: 0 đánh giá Lượt xem: 3.614 So sánh

MAINBOARD ASRock Fatal1ty Z170 Gaming K4 LGA1151 Intel DDR4 Supports 6th Generation Intel® Core™ Processors (Socket 1151) Digi Power, 10 Power Phase Design Supports Dual Channel DDR4 3200+(OC)

Xem thêm >

Giá khuyến mại:	Liên hệ [Giá đã có VAT]
