Phóng to Hình sản phẩm

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	B760M GAMING PLUS WIFI DDR4
CPU hỗ trợ	Intel
Chipset	INTEL B760
RAM hỗ trợ	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz
Khe cắm mở rộng	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Ổ cứng hỗ trợ	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Cổng kết nối (Internal)	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

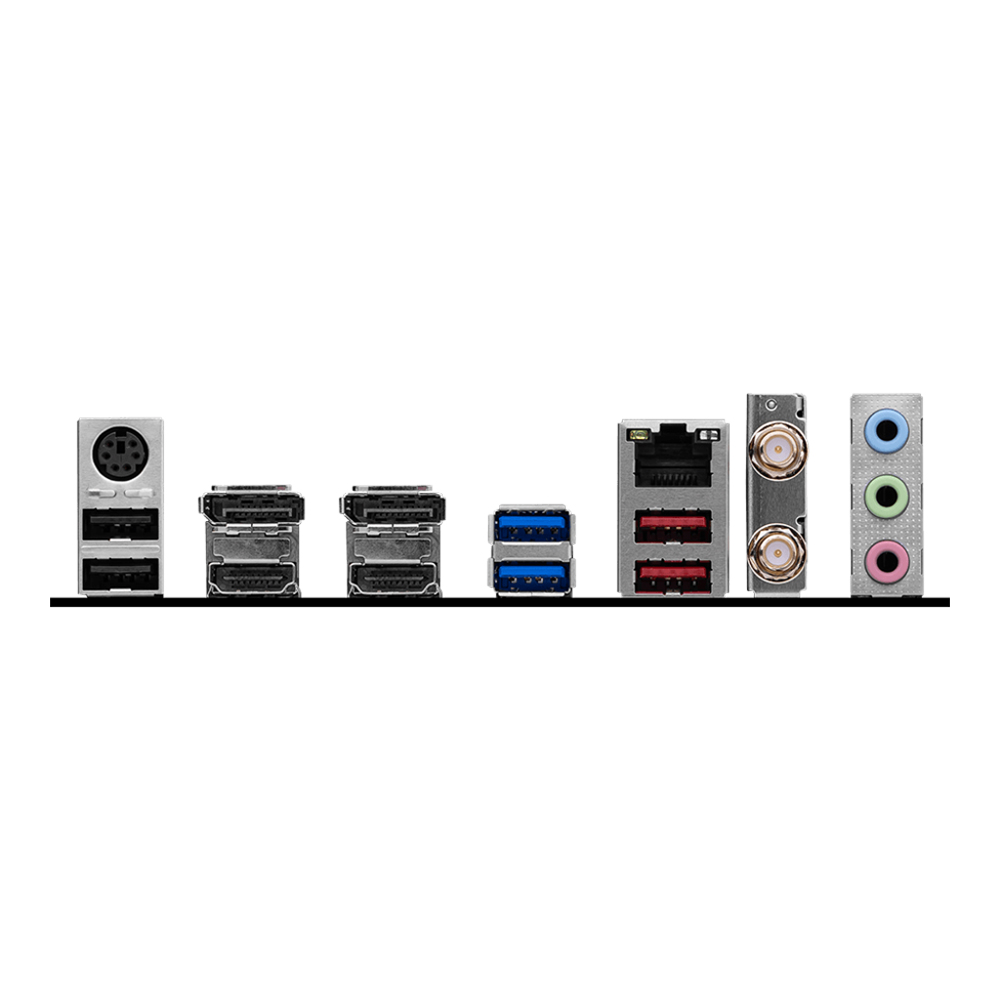

Cổng kết nối (Back Panel)	Keyboard / Mouse DisplayPort USB 5Gbps Type A ports 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 10 Gbps Type A ports Audio Connectors
LAN / Wireless	Realtek^® RTL8125BG 2.5G LAN Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA
Kích cỡ	mATX 243.84mmx243.84mm

XEM THÊM THÔNG SỐ

Mainboard MSI B760M GAMING PLUS WIFI DDR4

Name: Mainboard MSI B760M GAMING PLUS WIFI DDR4
Brand: MSI
SKU: MAMS0353
Price: 3499000 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAMS0353 0 đánh giá Lượt xem: 100 So sánh

Socket: LGA1700 Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Kích thước: mATX Khe cắm RAM: 4 khe (Tối đa 128GB) Khe cắm mở rộng: 2x PCI-E x16 slot, 1x PCI-E x1 slot

Xem thêm >

Giá niêm yết:	~~3.999.000 đ~~
Giá khuyến mại:	3.499.000 đ [Giá đã có VAT]
