Phóng to Hình sản phẩm

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	AMD
Chipset	AMD B850 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Khe cắm mở rộng	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset** 1 x PCIe 4.0 x1 slot
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C^® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Cổng kết nối (Back Panel)	1 x USB 20Gbps port (1 x USB Type-C^®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
LAN / Wireless	1 x Realtek 2.5Gb Ethernet TUF LANGuard Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth^® v5.3
Kích cỡ	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

XEM THÊM THÔNG SỐ

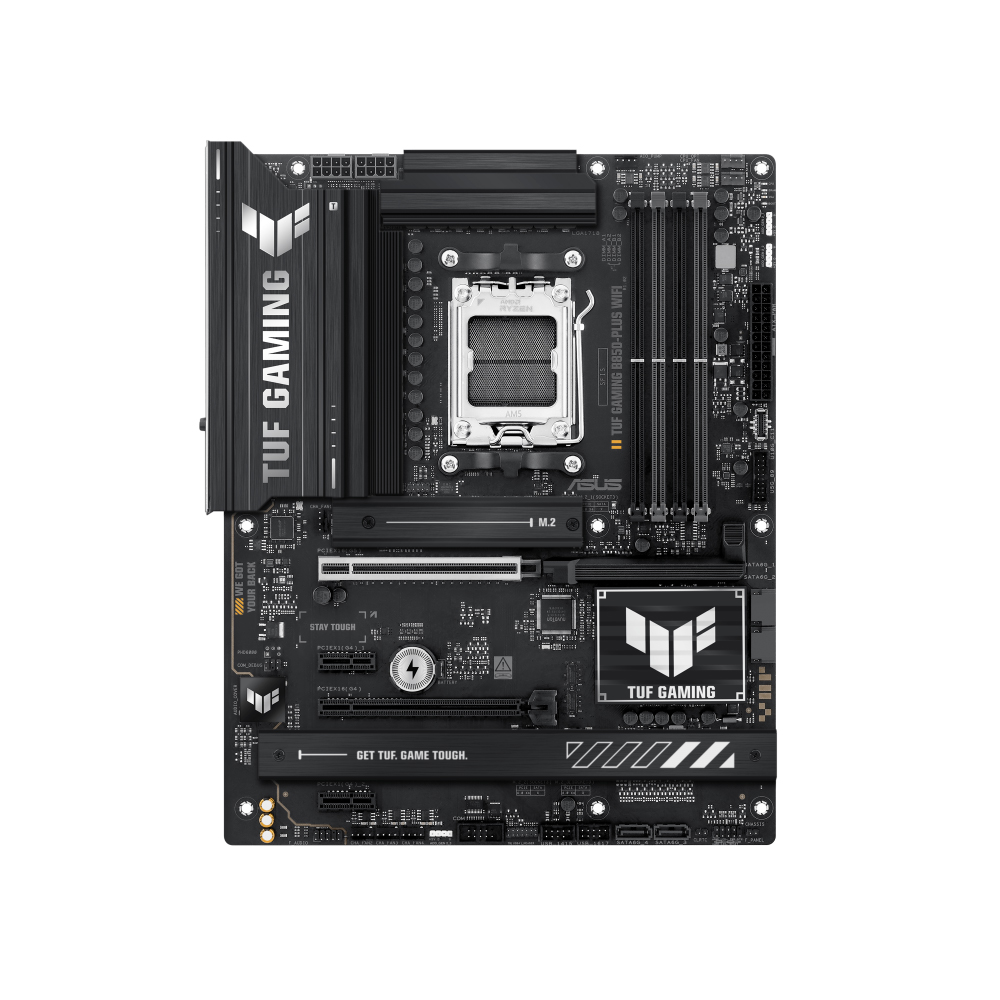

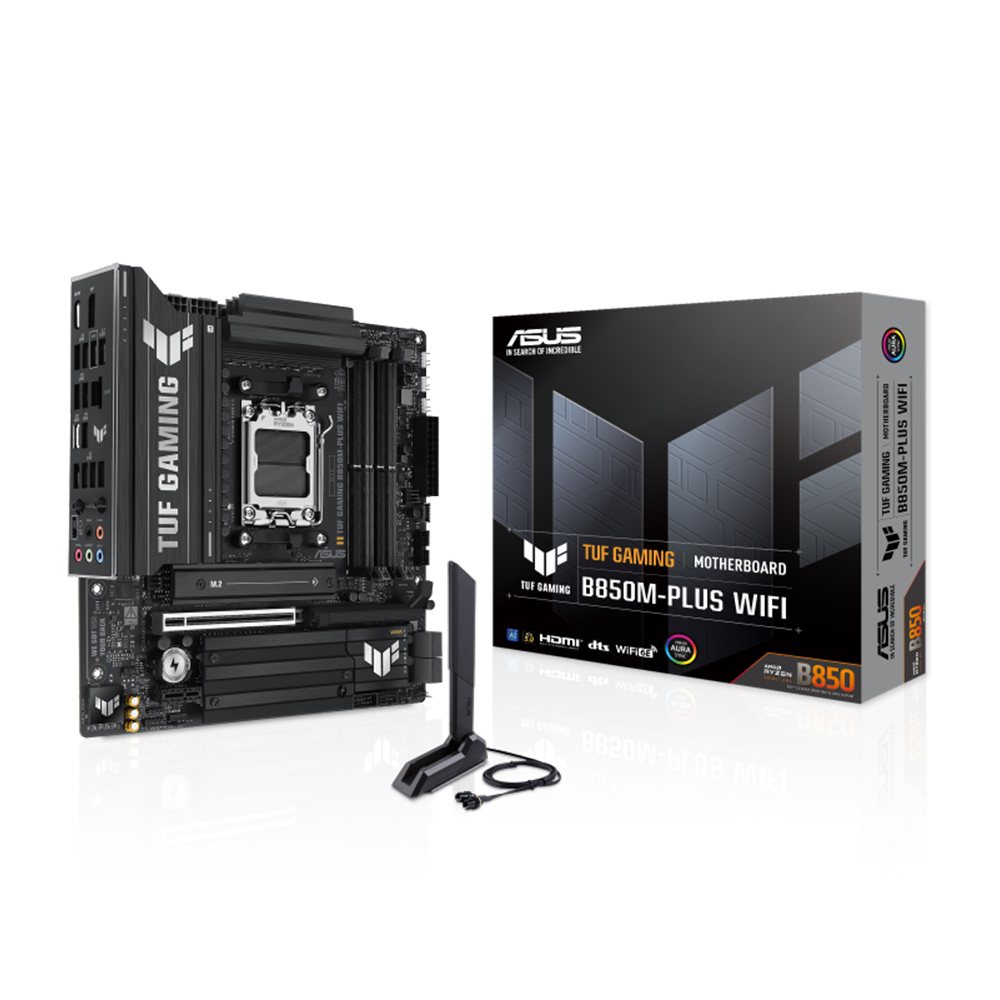

Mainboard Asus TUF GAMING B850M-PLUS WIFI DDR5

Name: Mainboard Asus TUF GAMING B850M-PLUS WIFI DDR5
Brand: Asus
SKU: MAAS0464
Price: 7399000 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAAS0464 0 đánh giá Lượt xem: 58 So sánh

Socket: AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Kích thước: micro-ATX Khe cắm RAM: 4 khe (Tối đa 256GB) Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0 x1 slot

Xem thêm >

Giá niêm yết:	~~8.139.000 đ~~
Giá khuyến mại:	7.399.000 đ [Giá đã có VAT]
	🎁Từ 16/4 đến 31/5/2025 quét QR Code thanh toán giảm ngay tới 1.000.000đ Xem chi tiết
