THÔNG SỐ KỸ THUẬT

CPU	Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® Z97
Memory	4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz Maximum shared memory of 512 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support	Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots	2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8) 1 x PCIe 2.0 x16 (max at x4 mode, black) *1 3 x PCIe x1
Storage	Intel® Z97 chipset : 1 x SATA Express port, blackcompatible with 2 x SATA 6.0 Gb/s ports 4 x SATA 6Gb/s port(s), , Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology 2 ASMedia® PCIe SATA controller : 3 2 x SATA 6Gb/s port(s), beige
LAN	Intel® I218V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Realtek® 8111GR, 1 x Gigabit LAN Controller(s) Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
Audio	Realtek® ALC1150 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in) Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports	Intel® Z97 chipset : 6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board) ASMedia® USB 3.0 controller : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue) Intel® Z97 chipset : 8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

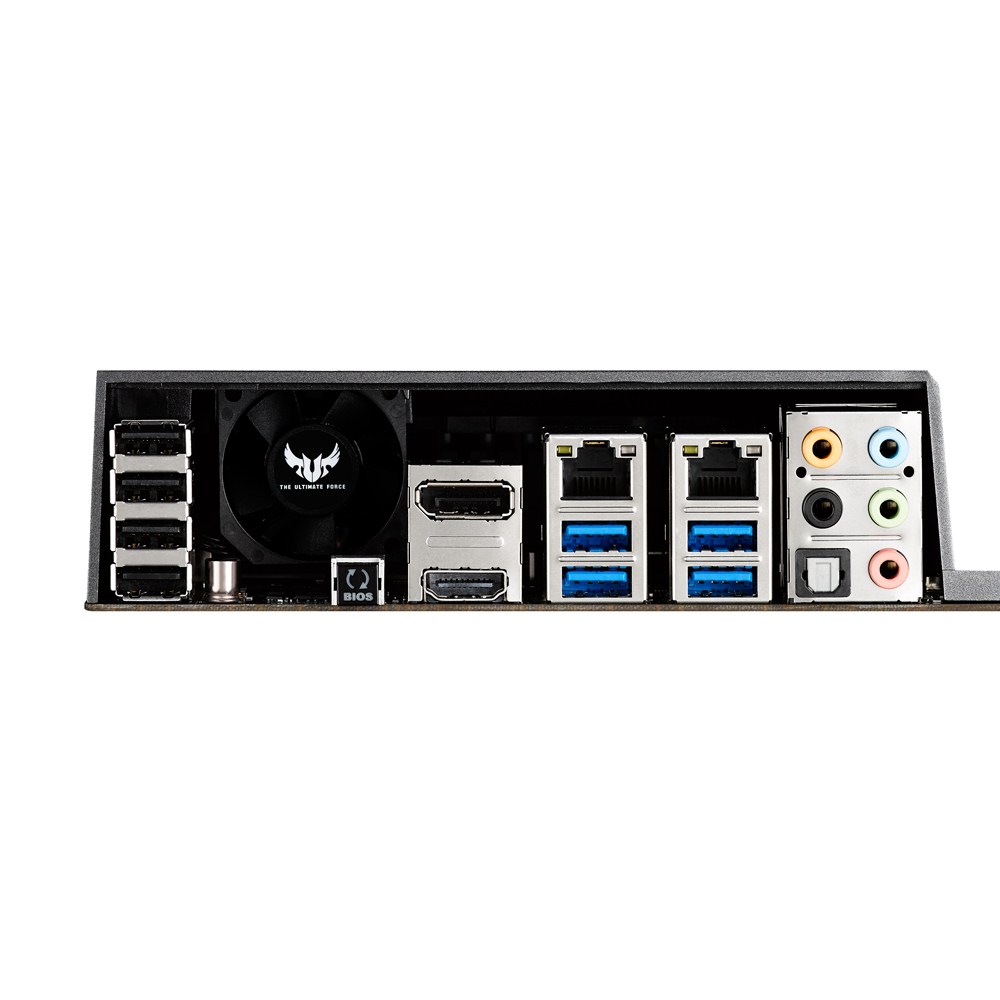

Back I/O Ports	1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

XEM THÊM THÔNG SỐ

MAINBOARD ASUS Sabertooth Z97 Mark 2

Name: MAINBOARD ASUS Sabertooth Z97 Mark 2
Brand: Asus
SKU: 16257
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: 0 đánh giá Lượt xem: 4.600 So sánh

MAINBOARD ASUS Sabertooth Z97 Mark 2 TUF ATX Intel® Z97 military-grade motherboard with advanced cooling and an even more accessible price LGA1150 Socket for the 5th, New 4th and 4th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors Intel® Z97 Express Chipset TUF ICe - Your Total Cooling Commander
