Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

Intel Socket LGA1851 for Intel Core Ultra Processors(Series 2)

Chipset

Intel B860 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 256GB, DDR5

Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)

Đồ họa

1 x DisplayPort
1 x HDMI port
1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot (supports x16 mode)

Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Ổ cứng hỗ trợ

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

ETHERNET

1 x Intel 2.5Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 9 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)

Front USB (Total 6 ports)
1 x USB 10Gbps (1 x USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Cổng kết nối (Internal)

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

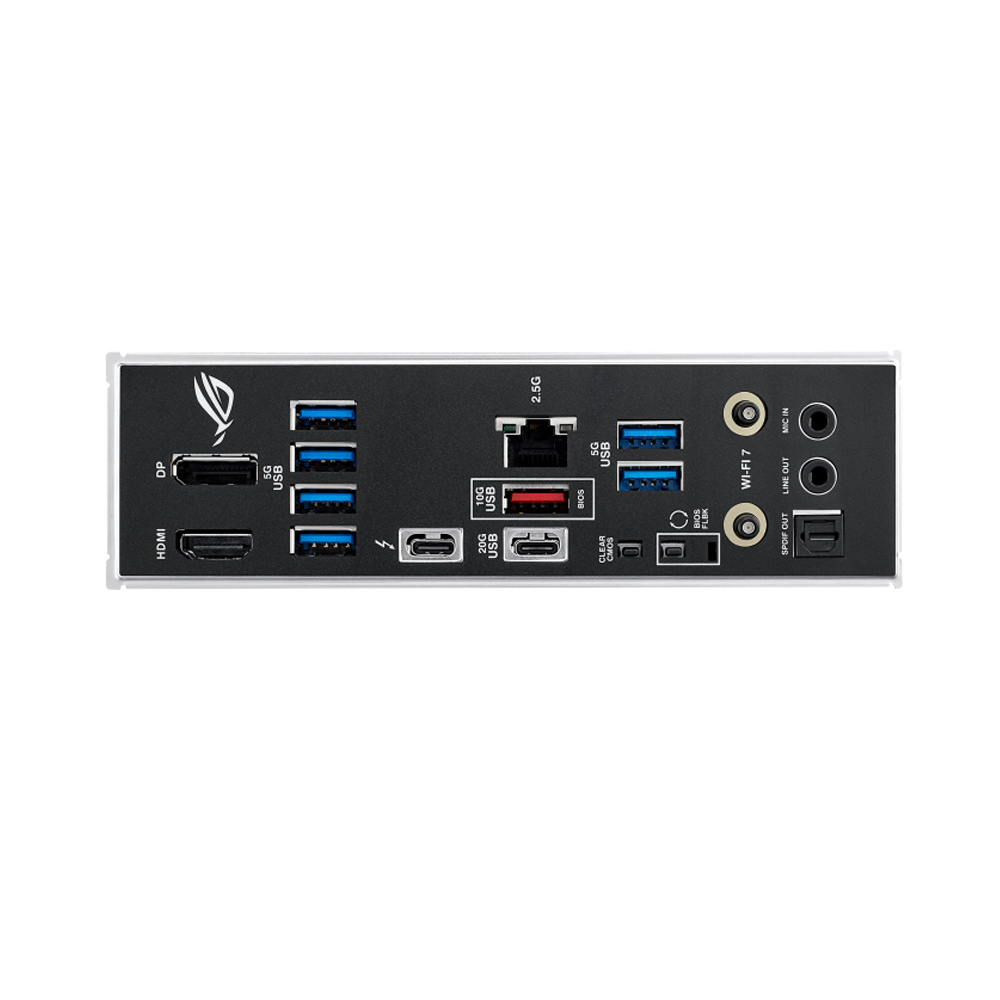

Cổng kết nối (Back Panel)

1 x Thunderbolt 4 (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

LAN / Wireless

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4

Âm thanh

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors - Audio cover

Kích cỡ

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
