THÔNG SỐ KỸ THUẬT

Hãng sản xuất	ASUS
Chủng loại	Asus Maximus VII Ranger
CPU hỗ trợ	Intel® Socket 1150 for the 5^th/New 4^th/4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® Z97
Bộ nhớ trong	4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
VGA	Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Âm thanh	ROG SupremeFX 2015 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - SupremeFX Shielding Technology - ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit) - TI RC4580 2VRMS audio OP AMP(s) Audio Feature : - Gold-plated jacks - DTS Connect - Optical S/PDIF out port(s) at back panel - Sonic SenseAmp - Sonic Studio II - Sonic Radar II
Mạng	Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY) Anti-surge LANGuard
Khe mở rộng	2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red) 1 x PCIe 2.0 x16 (x4 mode, black) *¹ 3 x PCIe 2.0 x1
Chuẩn lưu trữ	Intel® Z97 chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 6 x SATA 6Gb/s port(s), red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *²

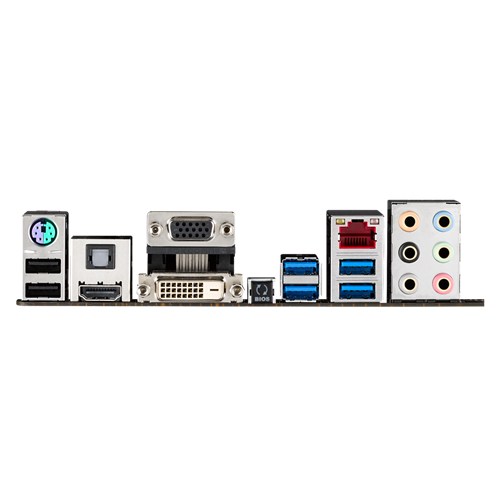

Cổng giao tiếp trước và sau	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s)
Kích thước	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

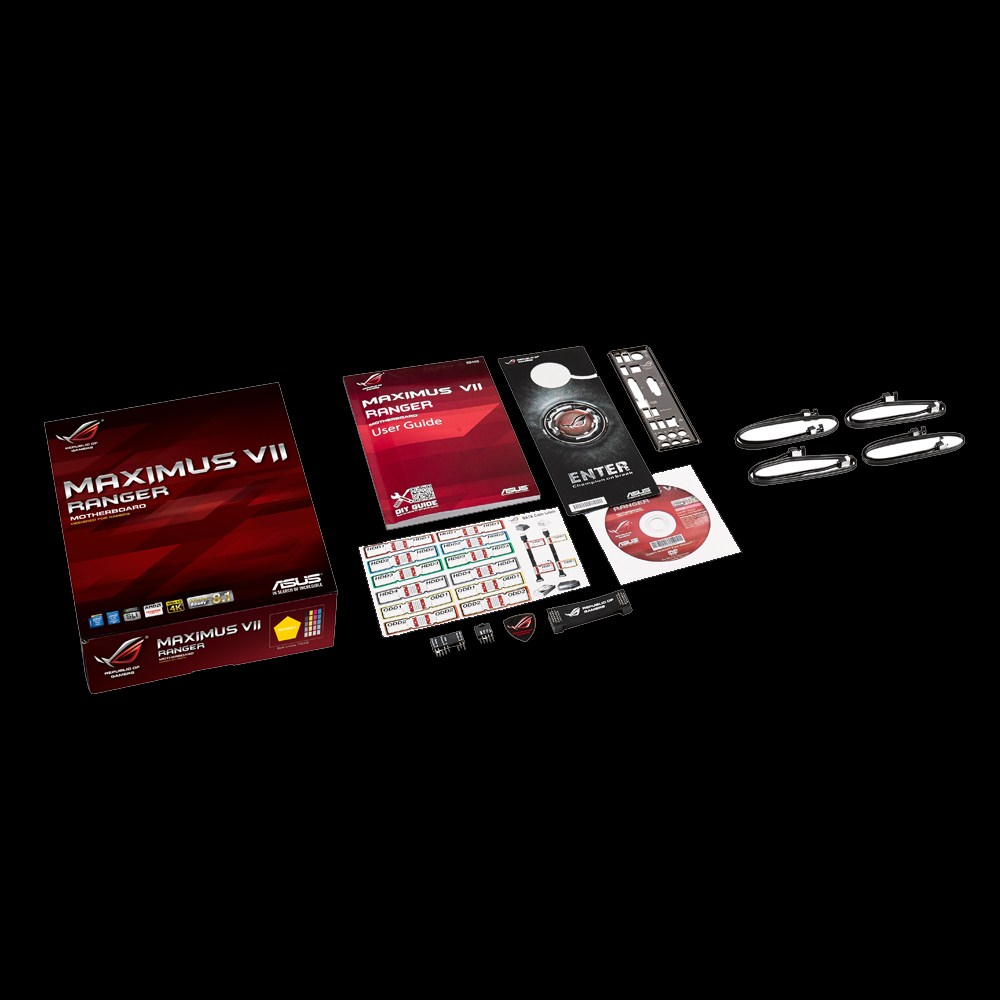

Phụ kiện đi kèm	Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main

XEM THÊM THÔNG SỐ

Mainboard Asus Z97 Maximus VII Ranger

Name: Mainboard Asus Z97 Maximus VII Ranger
Brand: Asus
SKU: MAAS0015
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAAS0015 0 đánh giá Lượt xem: 5.441 So sánh

Mainboard Asus Maximus VII Ranger Intel® LGA1150 4th, New 4th & 5th-Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready Intel® Z97 Express Chipset with M.2 support (up to 10Gb/s data-transfer) Intel™ Ethernet + LANGuard + GameFirst III –This is game networking taken to the next level. This is ROG SupremeFX 2014 + Radar II – New and improved audio that’s beyond compare

Xem thêm >

Giá khuyến mại:	Liên hệ [Giá đã có VAT]
